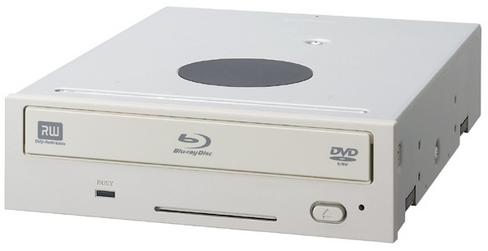

 P r o d u c t : Pioneer Blue-ray DVD Writer
 Model: BDR-101

  Features
  • Writes and reads BD-R/RE, DVD-R/RW and +R/RW formats
  • Buffer under-run protection for BD/DVD
  • Max. 2X writing speed for BD-R/RE
  • Max. 8X writing speed for DVD-R/+R
  • Max. 2X writing speed for DVD-R DL (Dual Layer)
  • Max. 2.4X writing speed for +R DL (Double Layer) Discs
  • Max. 4X writing speed for DVD-RW/+RW
  • BD data capacity: 25GB Single Layer disc. DVD data capacity: 4.7GB Single Layer disc, 8.5GB Dual/Double Layer disc.
  • Software bundle included - Roxio DigtalMedia LE Ver.7
Specifications
Write Support
  • BD-R (Ver 1.0 Single Layer), BD-RE (Ver 2.0 Single Layer)
  • DVD-R (Ver 2.0 for General disc only)
  • DVD-R DL (Dual Layer, Ver 3.0)
  • DVD-RW (Ver 1.0, 1.1 & 12)
  • DVD+R (Ver 1.0, 1.1 & 1.2),
  • DVD+R DL (Double Layer Ver 1.0)
  • DVD+RW (Ver 1.1 & 1.2)
  • DVD+RW High Speed (Ver 1.0)
Read Support
  • BD-ROM (Ver 1.0 Single & Dual Layer)*
  • BD-R (Ver 1.0 Single Layer)
  • BD-RE (Ver 2.0 Single Layer)
  • DVD-ROM & DVD-Video (Single & Dual Layer, Single & Dual Sided)
  • DVD-R, DVD-R DL (Dual Layer), DVD-RW
  • DVD-R (Ver 1.0 & 2.0 for Authoring)
  • +R, +R DL (Double Layer), +RW
Write Speed BD-R Single Layer
  • 2x CLV (8.99 MB/sec)
Write Speed BD-RE Single Layer
  • 2x CLV (8.99 MB/sec)
Write Speed DVD-R
  • 8x Zone CLV (11.08 MB/sec)
  • 4x CLV (5.54 MB/sec)*
  • 2x CLV (2.77 MB/sec)*
  • 1x CLV (1.385 MB/sec)*

    *The specification for 8cm discs is identical
Write Speed DVD-R Dual Layer
  • 2x CLV (2.77 MB/sec)
Write Speed DVD+RW
  • 4x CLV (5.54 MB/sec)*
  • 2x CLV (2.77 MB/sec)*
  • 1x CLV (1.385 MB/sec)*

    *The specification for 8cm discs is identical
Write Speed +R
  • 8x Zone CLV (11.08 MB/sec)
  • 4x CLV (5.54 MB/sec)
  • 2.4x CLV (3.32 MB/sec)
Write Speed +R Double Layer
  • 2.4x CLV (3.32 MB/sec)
Write Speed +RW
  • 4x CLV (5.54 MB/sec)
  • 3.3x CLV (4.57 MB/sec)
  • 2.4x CLV (3.32 MB/sec)
Read Speed BD-ROM Single and Dual Layer   2x CLV (8.99 MB/sec)

Read Speed BD-R Single Layer

  2x CLV (8.99 MB/sec)
Read Speed BD-RE Single Layer   Max. 8x CAV (11.08 MB/sec)
Read Speed DVD-ROM (Dual Layer)   Max. 8x CAV (11.08 MB/sec)
Read Speed DVD-Video (with CSS, Single / Dual Layer)   Max. 5x CAV (6.925 MB/sec)
Read Speed DVD-R, DVD-R Dual Layer, DVD-RW   Max. 8x CAV (11.08 MB/sec), Max. 6x CAV (8.31 MB/sec), Max. 6x CAV (8.31 MB/sec)
Read Speed +R, +R Double Layer, +RW   Max. 8x CAV (11.08 MB/sec), Max. 6x CAV (8.31 MB/sec), Max. 6x CAV (8.31 MB/sec)
Access Time BD-ROM/DVD-ROM   250msec, 150 msec (Random Average)
Interface   ATAPI (ATA-5, SFF-8090)
IDE Data Transfer Mode   PIO Mode 4, Multi Word DMA Mode 2, Ultra DMA Mode 2, Ultra DMA Mode 4 (Ultra-DMA66)*

   *It is required to use a cable corresponding to U-ATA66 (80-wire conductor cable).
Data Buffer    BD = 8MB, DVD = 2MB

Mounting Orientation

  Horizontal and Vertical (+/- 5 degrees)*

   *8cm discs cannot be used when the drive is vertically mounted. The case remains even when an adapter is used.
Power Requirement   +5V 1.25A
  +12V 1.6A (Maximum peak during start up)
Power Consumption

  25.4W (Maximum peak during start up), 3.09W (Standby average, Laser & Motor OFF),7.42W (Average during BD-RE 2X              CLV write), 7.57W (Average during DVD-R 8X Zone CLV Write)
Regulatory Approval

 UL60950-1 First Edition, CSA C22.2 No.60950-1-03, EN60950-1:2001+A11, CB Report: IEC60950-1:2001, FIMKO, SEMKO (Optional)

Dimensions (W x H x D)   (Including height of Front Bezel) 148 x 42.3 x 198 ?mm
Net Weight   1.1?kg
